Amateur
/
IC-7760
/
All Mode Amateur
All Mode Amateur
HF/50 MHz TRANSCEIVER
IC-7760
High Power & Clean Transmit Signal for Great Strength in Contests and DX Hunting
A New Innovative Shack Style

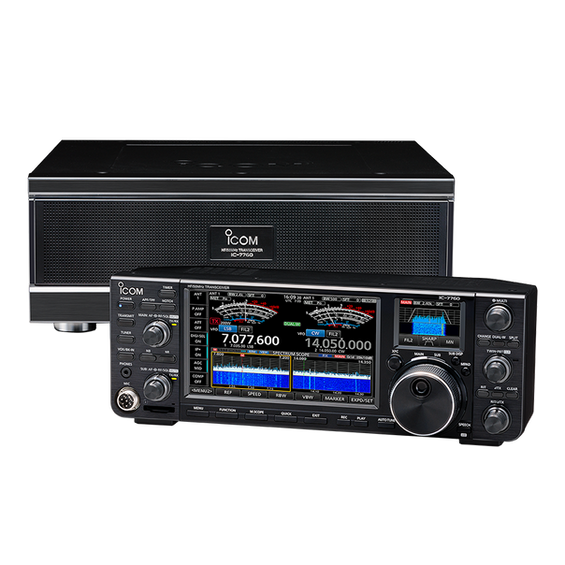

Full Control Head with Separated RF Deck
In today’s connected world, the IC-7760 introduces a new connected system consisting of a remote control head and RF deck, connected with a commercially available control (LAN) cable. This concept increases the flexibility of your station installation, making more space available on the desktop by placing the RF deck in an area closer to the antenna feed point. In addition to the direct connect feature, control head to RF deck, utilize your home network to make any tabletop your shack and a PC is not required!
Specification
General
Frequency coverage: (USA version)*1 | RX | 0.030 ~ 60.00 MHz*2 |
TX | 1.800 ~ 1.999, 3.500 ~ 3.999, 5.255 ~ 5.405*3 7.000 ~ 7.300, 10.100 ~ 10.150, 14.000 ~ 14.350, 18.068 ~ 18.168, 21.000 ~ 21.450, 24.890 ~ 24.990, 28.000 ~ 29.700, 50.000 ~ 54.000 MHz | |
Frequency coverage: (EUR version)*1 | RX | 0.030 ~ 60.00 MHz*2 |
| TX | 0.1357 ~ 0.1378, 1.810 ~ 1.999, 3.500 ~ 3.800, 7.000 ~ 7.200, 10.100 ~ 10.150, 14.000 ~ 14.350, 18.068 ~ 18.168, 21.000 ~ 21.450, 24.890 ~ 24.990, 28.000 ~ 29.700, 50.000 ~ 52.000 MHz |
Mode | USB, LSB, CW, RTTY, PSK31/63, AM, FM | |
Number of channels | 101 (99 regular, 2 scan edges) | |
Antenna connectors | SO-239 × 4 (50Ω unbalanced, Tuner OFF) BNC × 1 (RX antenna In/Out) | |
Power supply requirement | RF Deck | 90 ~ 264 V AC |
Control Head | 15.0 V DC ±0.75 V (with BC-267A/E) | |
Power consumption | Tx | 800 VA |
Rx | RF Deck + control head 150 VA typical (Stand-by/Max. audio) Control head 3.0 A (Max. audio, at 15.0 V DC) | |
Operating temperature range | 0°C ~ 50°C; 32°F ~ 122°F | |
Frequency stability | Less than ±0.5ppm (0°C ~ 50°C; 32°F ~ 122°F) | |
Frequency resolution | 1 Hz | |
Dimensions (W×H×D) (projections not included) | RF Deck | 425 × 149 × 442 mm; 16.7 × 5.9 × 17.4 in |
Control Head | 340 × 118 × 103.5 mm; 13.4 × 4.6 × 4.1 in | |
Weight (approximately) | RF Deck | 15.8 kg; 34.8 lb |
Control Head | 2.3 kg; 5.1 lb |
1 Varies according to version.2 Guaranteed range: 0.100 ~ 29.999, 50.000 ~ 54.000 MHz.*3 Some frequency bands are not guaranteed.
Transmitter
Output power (HF/50 MHz) | SSB/CW/FM/RTTY/PSK | 1 ~ 200 W |
AM | 0.25 ~ 50 W | |
Output power (Transverter connector) | HF/50 MHz | More than –20 dBm |
137 kHz*4 | More than –20 dBm | |
Modulation system | SSB | Digital P.S.N. modulation |
AM | Digital Low power modulation | |
FM | Digital Reactance modulation | |
Spurious emission | Unwanted emission | HF bands Less than –50 dB 50 MHz band Less than –66 dB |
Out of band emission | Out of band emission | HF bands Less than –40 dB 50 MHz band Less than –60 dB |
Carrier suppression | More than 50 dB | |
Unwanted sideband | More than 50 dB | |
Microphone impedance | 600 Ω |
*4 EUR version only.
Receiver
Receiver system | Direct Sampling Superheterodyne | ||||
Intermediate frequency | 12 kHz | ||||
Sensitivity *5 | 135 kHz | 0.5 ~ 1.799 MHz | 1.8 ~ 29.999 MHz | 50 MHz band | |
SSB/CW: (at 10 dB S/N) | 1.41 μV typ. | – | 0.16 μV typ. | 0.13 μV typ. | |
AM: (at 10 dB S/N) | – | 6.3 μV typ. | 2.0 μV typ. | 1.0 μV typ. | |
FM (at 12 dB SINAD) | – | – | 0.5 μV typ.*6 | 0.32 μV typ. | |
Sensitivity for RED version.*7 | 1.8 ~ 2.999 MHz | 3.0 ~ 29.999 MHz | 28.0 ~ 29.7 MHz | 50 MHz band | |
SSB: (at 12 dB SINAD) | 10 dBμV emf | 0 dBμV emf | – | –6 dBμV emf | |
AM: (at 12 dB SINAD) | 16 dBμV emf | 6 dBμV emf | – | 0 dBμV emf | |
FM (at 12 dB SINAD) | – | – | 0 dBμV emf | –6 dBμV emf | |
Squelch sensitivity (Threshold) | SSB | Less than 3.2 μV (Preamp ON) | |||
FM | Less than 0.32 μV (Preamp ON) | ||||
Selectivity (Filter shape: Sharp) | More than | Less than | |||
SSB (BW: 2.4 kHz) | 2.4 kHz/–6 dB | 3.6 kHz/–60 dB | |||
CW (BW: 500 Hz) | 500 Hz/–6 dB | 700 Hz/–60 dB | |||
RTTY (BW: 500 Hz) | 500 Hz/–6 dB | 700 Hz/–60 dB | |||
AM (BW: 6kHz) | 6.0 kHz/–6 dB | 15.0 kHz/–60 dB | |||
FM (BW: 15 kHz) | 12.0 kHz/–6 dB | 20.0 kHz/–60 dB | |||
Spurious and image rejection | HF bands | More than 70 dB | |||
50 MHz band | More than 70 dB (Except for ADC Aliasing)*8 | ||||
Audio output power | More than 2.0 W (at 10% distortion with an 8Ω) |
*5 HF: Preamp 1 ON, filter shape Soft, 50 MHz: Preamp 2 ON, filter shape Soft, SSB/CW BW= 2.4 kHz, AM BW= 6 kHz, FM BW= 15 kHz
*6 28.0 ~ 29.7 MHz only
*7 Less than, HF: Preamp 1 ON, filter shape Soft, 50 MHz: Preamp 2 ON, filter shape Soft,
BW: SSB=2.4 kHz, AM=4 kHz, 60% modulation, FM=7 kHz, 60% modulation
*8 ADC Aliasing frequency: 122.880 MHz – RX frequency
Tuner
Frequency range | 1.8 ~ 50 MHz bands |
Matching impedance range | 16.7 ~ 150 Ω unbalanced (less than 1:3 VSWR) |
Tuning accuracy | Less than 1:1.5 VSWR |
Tuning time | 2 ~3 seconds (average) 15 seconds (Maximum) |
All stated specifications are subject to change without notice or obligation.
Supplied Accessories (May differ depending on the version)
Control head
AC power cable
AC adapter, BC-267A/E
Ethernet cable, 3.0 m, 9.8 ft
Desktop stand
Plugs
Rear Panel View
Control Head RF Deck
