Marine
/
IC-M510
(EXP version)
/
Marine VHF
Marine VHF
VHF MARINE TRANSCEIVER
IC-M510
(EXP version)
Class-D DSC VHF Marine Radio
with WLAN Function

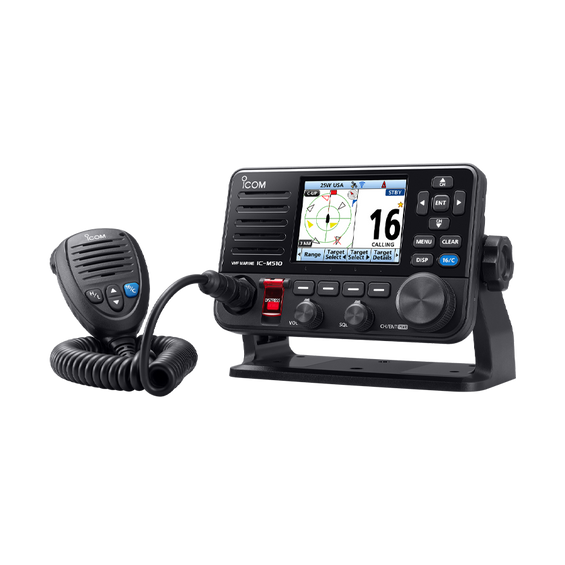

VHF marine radio
The IC-M510 VHF marine radio provides immediate, reliable, and essential maritime communication for all types of vessels, from merchant ships to fishing boats and pleasure boats. It supports safety on the water with various navigation functions. While designed to match the sophisticated interior of modern boats, its tough construction will also withstand the harshest environments at sea. Integration with the newly developed RS-M500 smart-device app will enable an unprecedented onboard communication experience.
Specification
General
Frequency range | TX | 156.025–157.425 MHz |
RX | 156.050–163.275 MHz | |
DSC | 156.525 MHz | |
AIS1, 2*1 | 161.975, 162.025 MHz | |
Usable channels | USA, CAN, INT, WX channels | |
Type of emission | 16K0G3E (FM), 16K0G2B (DSC), 16K0GXW (AIS)*1 | |
Power supply requirement | 13.8 V DC (11.7–15.9 V DC) | |
Current drain (at 13.8 V DC) | TX 25 W output | 5.5 A |
RX Max. audio | 3.3 A | |
Operating temperature range | –20°C to +60°C; –4°F to +140°F | |
Antenna impedance | 50 Ω | |
Weight (approx.) | 730 g; 1.6 lb (Not including microphone) |
Transmitter
Output power (at 13.8 V DC) | 25 W, 1W |
Max. frequency deviation | ±5 kHz |
Frequency tolerance | ±0.5 kHz |
Spurious emissions | Less than −70 dBc (at 25 W) |
Residual modulation | More than 40 dB |
Adjacent channel power | More than 70 dB |
Receiver
Sensitivity (at 12 dB SINAD) DSC (1% BER) | 0.32 μV typical 0.89 μV emf typical |
Adjacent channel selectivity DSC (1% BER) | More than 75 dB More than 73 dBμ emf |
Spurious response DSC (1% BER) | More than 75 dB More than 73 dBμ emf |
Intermodulation DSC (1% BER) | More than 75 dB More than 68 dBμ emf |
Hum and noise | More than 40 dB |
Audio output power (at 10% distortion) | More than 15 W with a 4 Ω external speaker |
Wireless LAN
Wireless LAN standard | IEEE802.11 b/g/n |
Authentication and Encryption | WEP (64/128 bit), WPA-PSK (TKIP), WPA2-PSK (AES) |
Channels | 1 to 13 (2.4 GHz band)*2 |
Output power | Less than 10 mW/MHz |
1 Only for the Integrated AIS version. 2 May differ depending on the country of use.
Measurements made in accordance with TIA/EIA 603.
All stated specifications are subject to change without notice or obligation.
Applicable U.S. Military Specifications
Icom makes rugged products that have been tested to and passed the following MIL-STD requirements and strict environmental standards.
Standard | MIL-810 G | MIL-810 G |
Method | Procedure | |
Low Pressure | 500.5 | I, II |
High Temperature | 501.5 | I, II |
Low Temperature | 502.5 | I, II |
Temperature Shock | 503.5 | I-C |
Solar Radiation | 505.5 | I |
Rain | 506.5 | I |
Humidity | 507.5 | II |
Salt Fog | 509.5 | - |
Dust Blowing | 510.5 | I |
Immersion | 512.5 | I |
Vibration | 514.6 | I |
Shock | 516.6 | I, IV |
Also meets equivalent MIL-STD-810-C, -D, -E and -F.
Applicable IP Rating
Ingress Protection Standard | |
Dust & Water | IP68 Dust-tight and waterproof protection |
Supplied Accessories
Speaker microphone, HM-205RB
Microphone hanger
DC power cable
Mounting bracket kit
Dimensions
